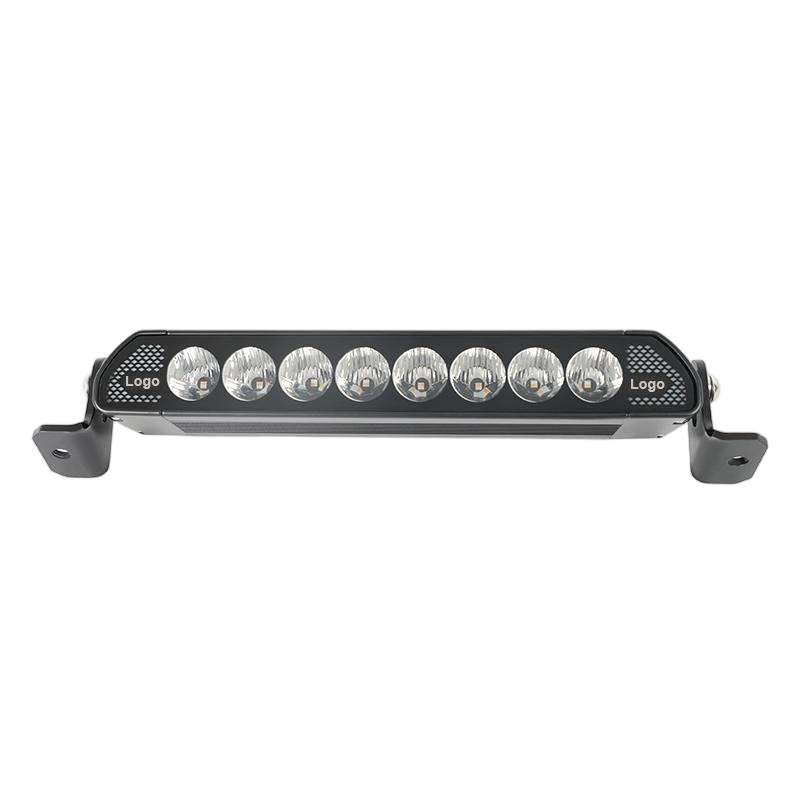

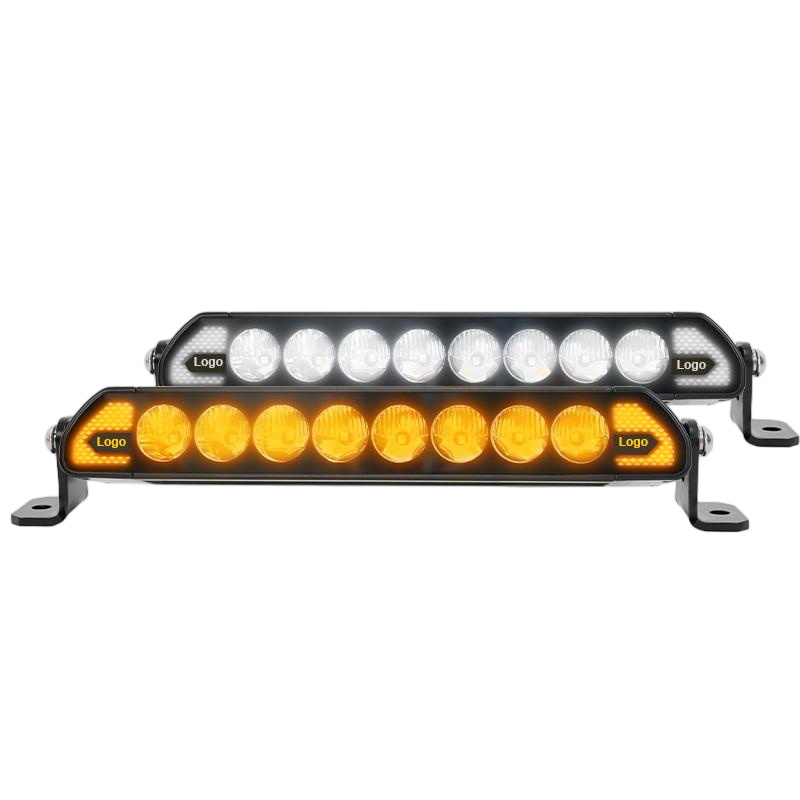

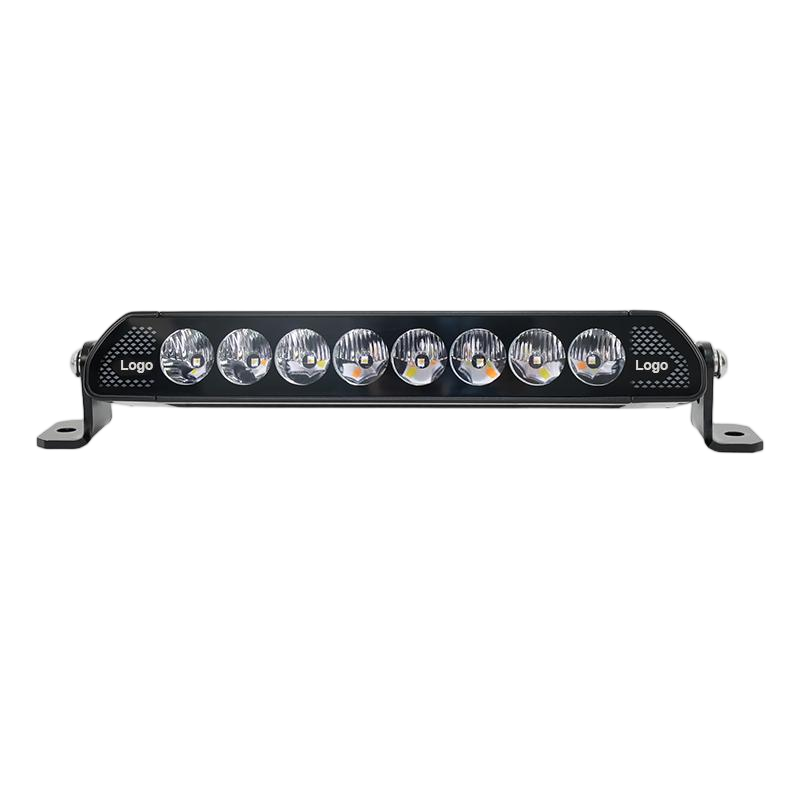

ZR-BS20 LED LIGHT BAR
ZR-BS20 LED LIGHT BAR - Image 2
ZR-BS20 LED LIGHT BAR - Image 3
ZR-BS20 LED LIGHT BAR - Image 4

ZR-BS20 LED LIGHT BAR

+ Free Shipping

FULL SIZE LED DRIVING LIGHT BAR 10INCH T0 50INCH, ON-ROAD OR OFF ROAD

1. High-performance LED chips, color temperature 5700K /1700K

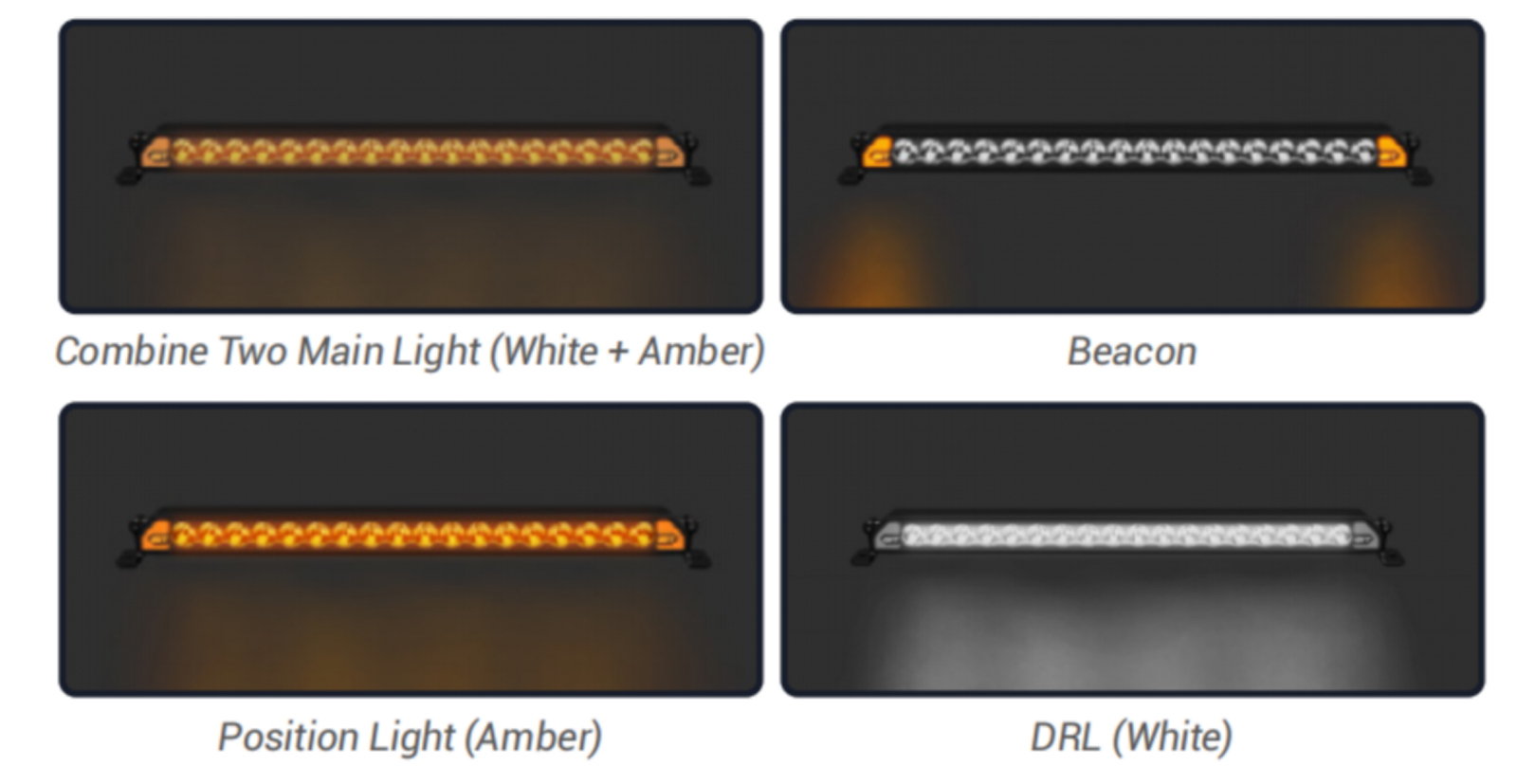

2. Function options: Driving Light (white/amber/amber&white switchable) Welcome mode/DRL(white)/Position Light(amber)/Beacon
3. 6063 Extruded Aluminium housing enables efficient heat dissipation
4. Adjustable 4mm 304 side mount & sliding aluminum bottom mount available
5. ECE R10, ECE R148, ECE R149, CE, RoHS, IP67, IP69K approval.

Category:
Part No. Voltage Power Lumens(White) Function Length Beam distance
ZR-BS20-040 10-30V 40W 3000LM Driving+DRL+Position 272mm 1lux@486m
ZR-BS20-090 10-30V 90W 6750LM Driving+DRL+Position 527mm 1lux@740m
ZR-BS20-140 10-30V 140W 10500LM Driving+DRL+Position 782mm 1lux@920m
ZR-BS20-190 10-30V 190W 14250LM Driving+DRL+Position 1037mm 1lux@1074m
ZR-BS20-240 10-30V 240W 18000LM Driving+DRL+Position 1292mm 1lux@1206m
